Pilgrims: The bike to change wondering to wandering.

Open your riding up to new adventure. Passing roadside paths and trails we query, “Where does that go?” Quash the curiosity with extra tyre clearance and RoadPlus geometry that allow you to make your own tracks. On the black stuff the same geometric tweaks makes for rock solid descending and year round, mile crunching dependability.

The Pilgrims frame kits are now in stock in most size and colour combinations. We also have a short window of opportunity to get out of stock frames air shipped ahead of our restocking in mid to late December. Email us via the contact page for more details

Buy Pilgrims Frameset

Pilgrims frameset: £750.00 - includes Frame, fork, headset and seat collar

Large tyre clearance, the lower BB and a slight stretch to the wheelbase hint at the Pilgrims versatility. With room for larger rubber you can tackle far more rugged terrain than a normal road bike (we have had success up to 32 and even some 35c tyres , but this is very much dependant on the model and rim combo), . Come rainy season, 28c tyres and guards can be fitted (again rim / tyre combo dependant). The lowered centre of gravity places riders weight further below the stretched apart axles so stability is maintained without sacrificing agility. On the road small body movements will shift the bike around with aplomb, but if your rubber lets go on a loose surface, it’s all remains more easily controllable. The Pilgrims is a road bike that can do that little bit extra or more simply - RoadPlus.

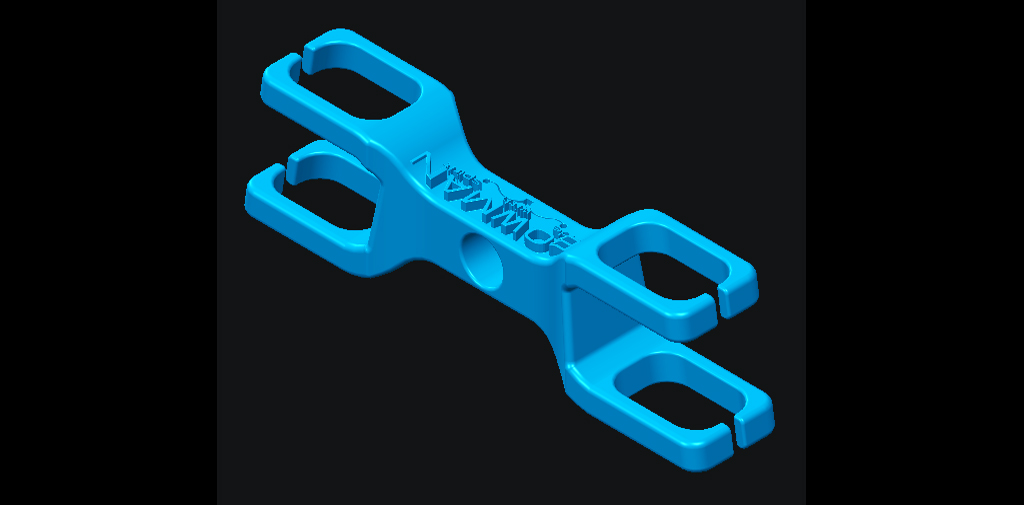

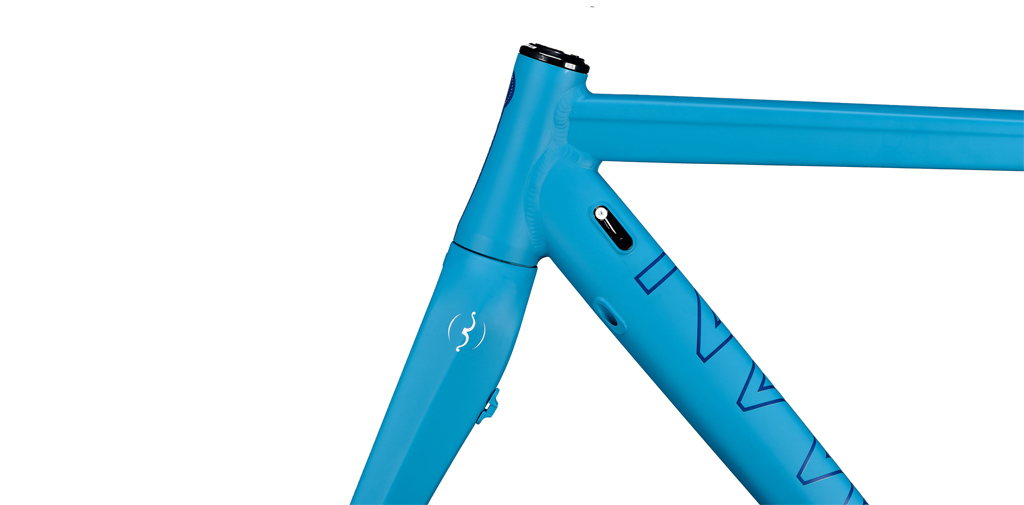

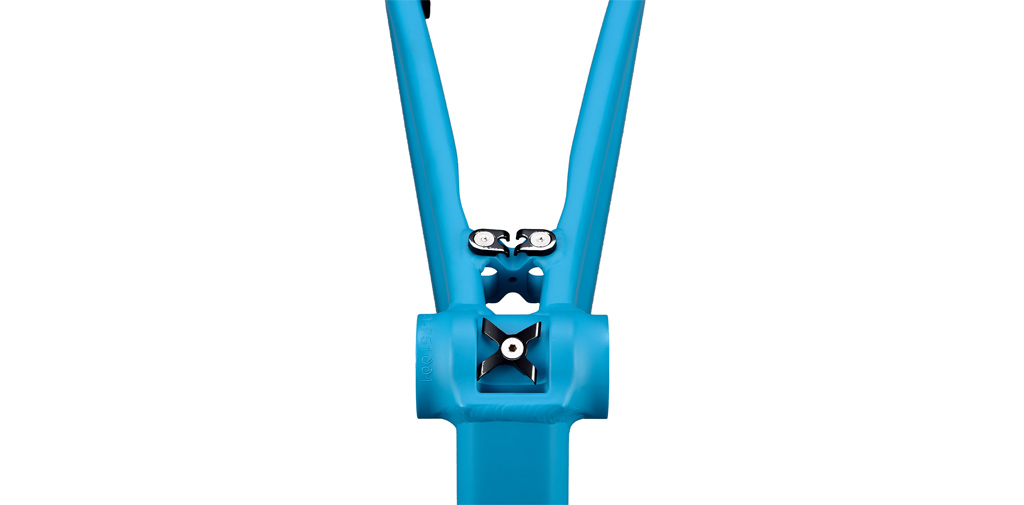

As befits a bike suits year round use on varied terrains and all weathers; full cable-outer runs internally through the frame. Fixed in place with our Modular Cable Routing, this allows Di2 and EPS fitment thanks to alternative inserts supplied with the frame; and all whilst maintaining clean lines. Post Mount disc brakes allow for 140mm rotors without adapters but with clearance for 160mm front and rear. Replaceable and removable 3D printed mudguard mountings mean full mudguards can be fitted alongside the discs, should the ultimate winter bike be in your dreams.

  • Triple Butted, Custom shaped, 7005 – T6 Aluminium frame
  • Tough anodised or painted finish
  • Full carbon-monocoque, 1:1/8th-1.5” steerer, disc specific fork
  • CNC finished, Tapered, headtube
  • Clearance for (up to) 33-35c tyres - see notes above
  • Full mudguard compatibility with removable - 3D printed - Guard Bridge and Fork Mounts
  • PF86 bottom bracket shell
  • Modular Cable Routing – full mechanical and Di2 / EPS compatibility
  • FlatStay compliant seat stays
  • 27.2 seatpost for improved comfort
  • FSA, #42 ACB headset (included)

50 52 54 56 58
top tube 505 520 540 555 575
head tube 110 125 145 165 185
head angle 70.5 71 71.5 72 72
seat angle 73.5 73.5 73 73 72.5
seat tube c-t 500 525 535 555 575
chainstays 418 420 420 420 425
bb drop 80 78 75 75 75
stack 516 530 547 568 587
reach 352 363 373 381 390
