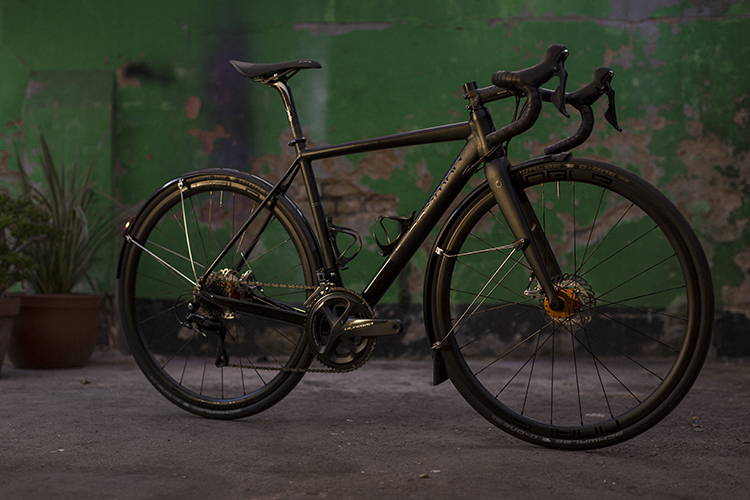

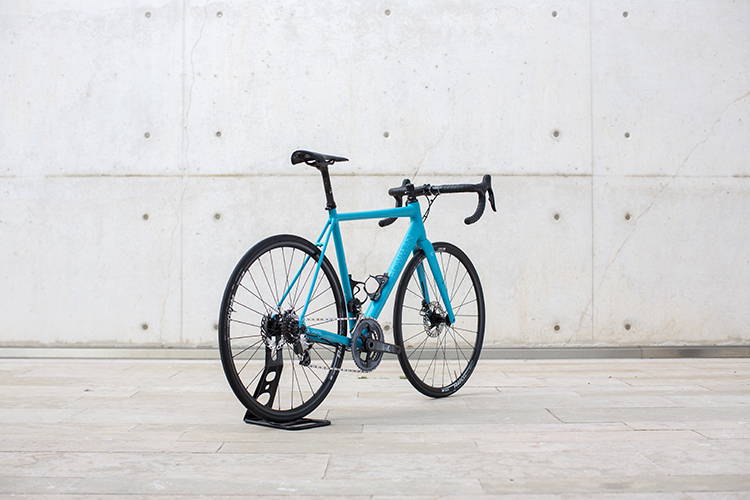

Formulated for adventures, the Pilgrims Disc is all about expanding horizons. A big-rubber ready, super-flexible companion, opening a world of adventures with an eye to gratuitous ground covering.
Always explore and #TurnWonderIntoWander
OVERVIEW

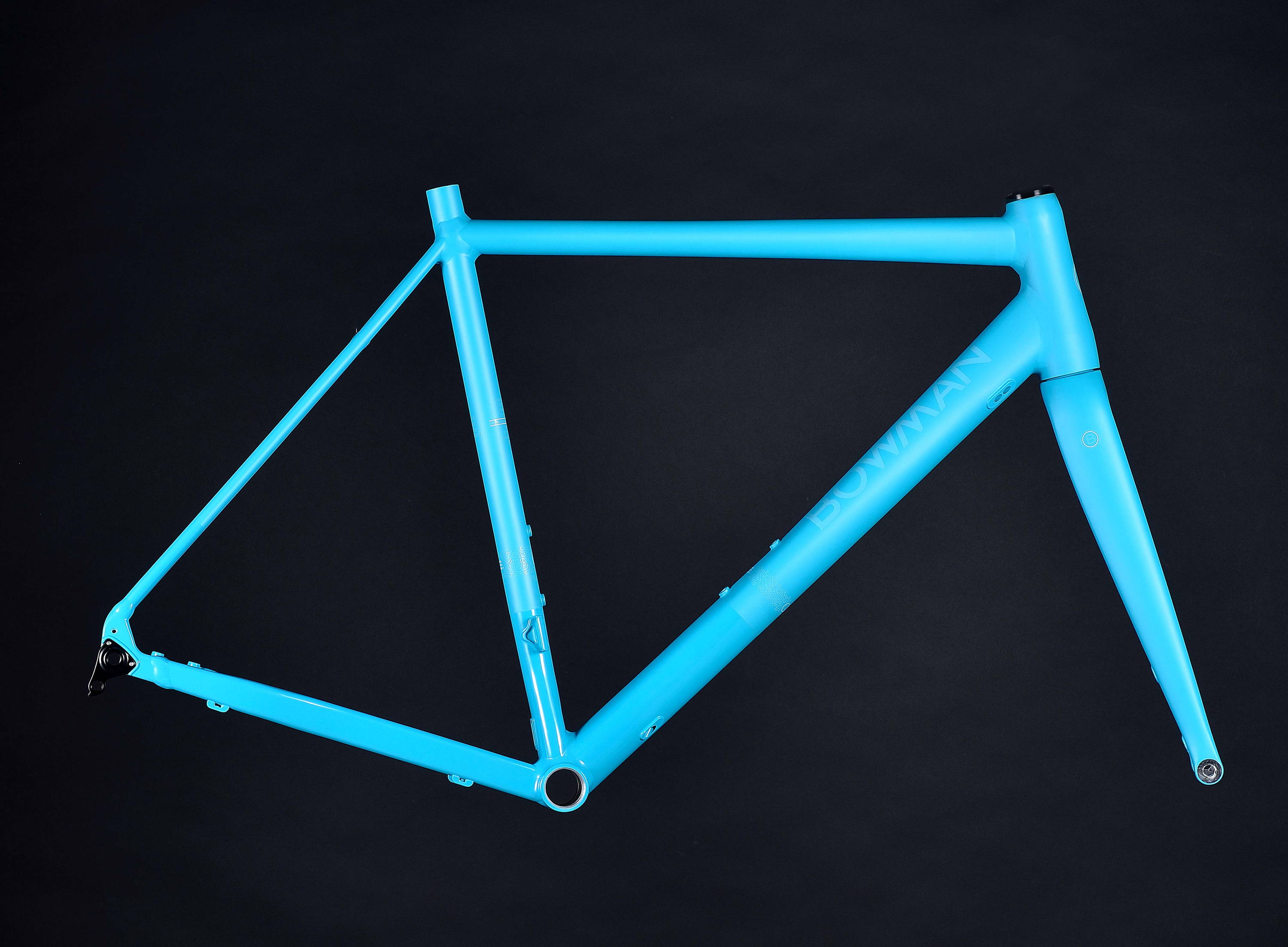

The Pilgrims Disc is the future of road bikes: a road bike capable of taking big tyres. It could be city streets; narrow, country lanes or wayward trails and paths that pique your interest.
An all-rounder ready and willing to take on all of it – The Pilgrims Disc is #RoadPlus

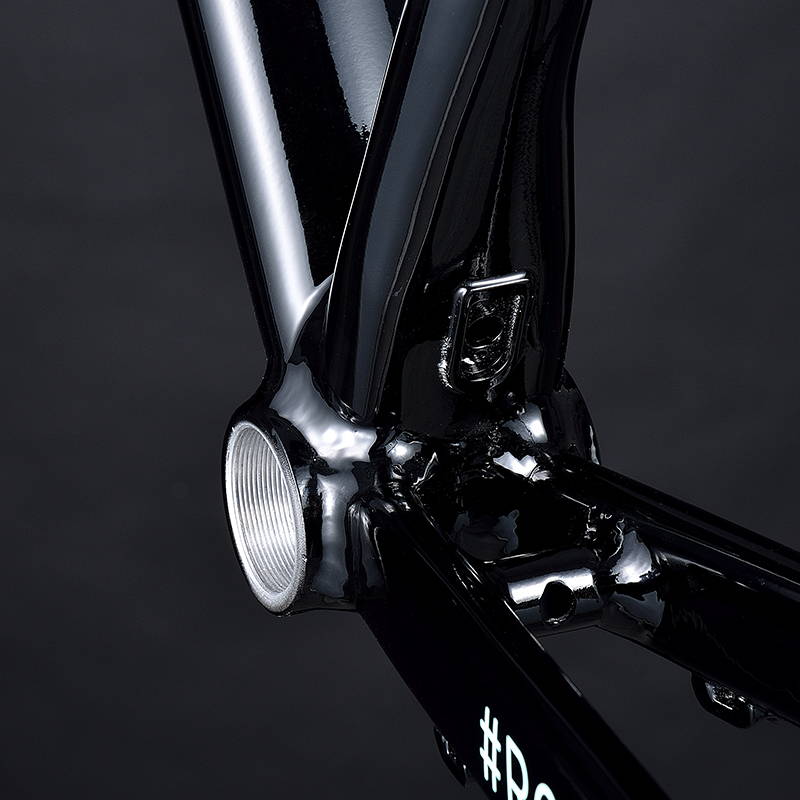

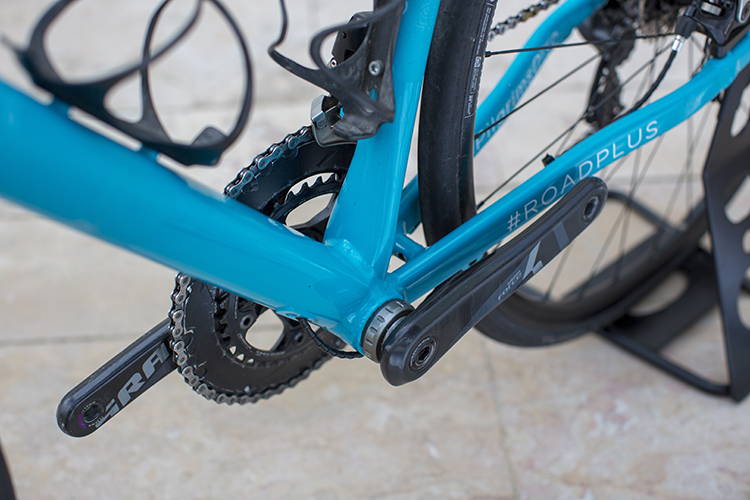

THREADED BOTTOM BRACKET
All Bowman frames use a threaded bottom bracket. Super easy to fit at home with a single tool, they are a very reliable system. All major crank and component manufacturers have a crank that will fit straight out of the box and without the need for adapters.
The English threaded bottom bracket is the perfect, solid and reliable option

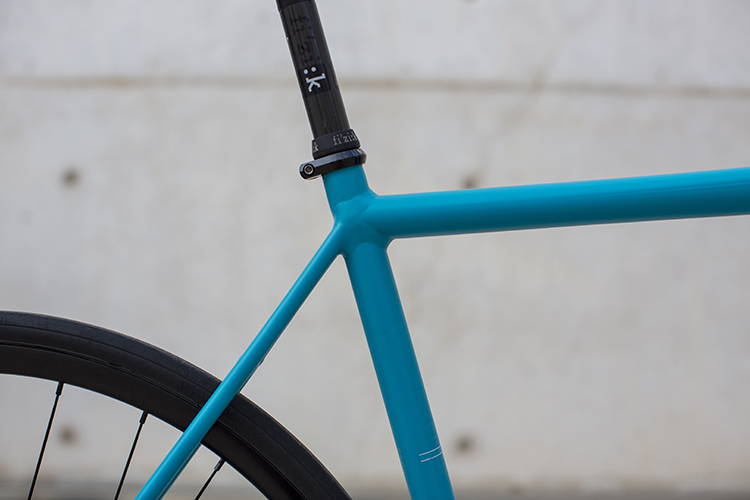

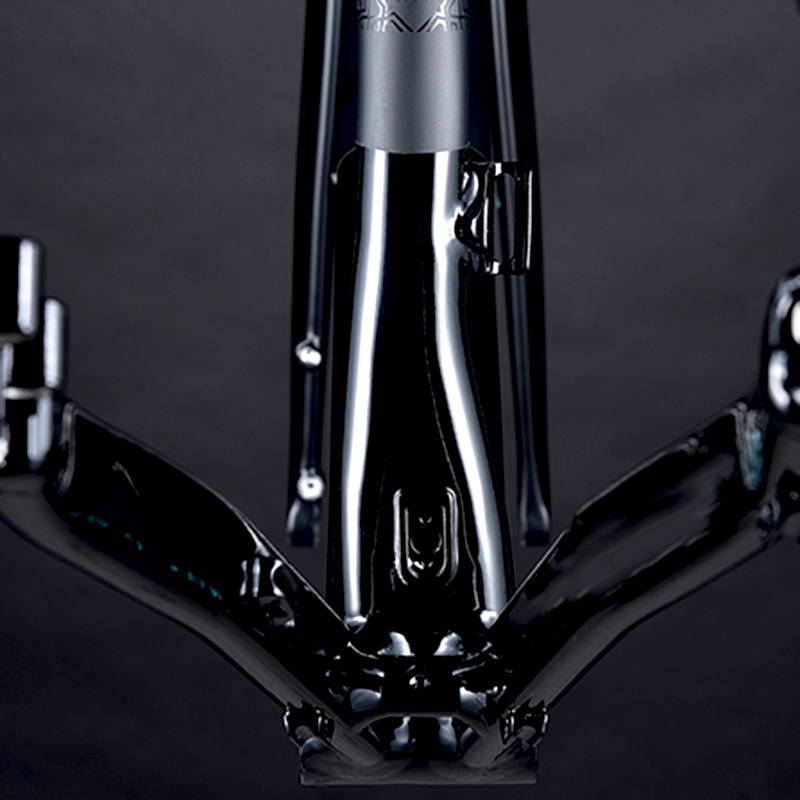

FLARE-SQUARE SEAT-TUBE
Keeping everything in line with a powerful rider smashing away at the cranks, whilst maintaining comfort is quite a tricky conundrum – the Flair Square seat tube is our solution.
Designed to reduce sideways deflection, the shape allows us to use a smaller, 27.2 seatpost whilst maintaining the power transfer sensations associated with large diameter seat-tubes. It’s also quite a bit lighter than a thicker walled round tube

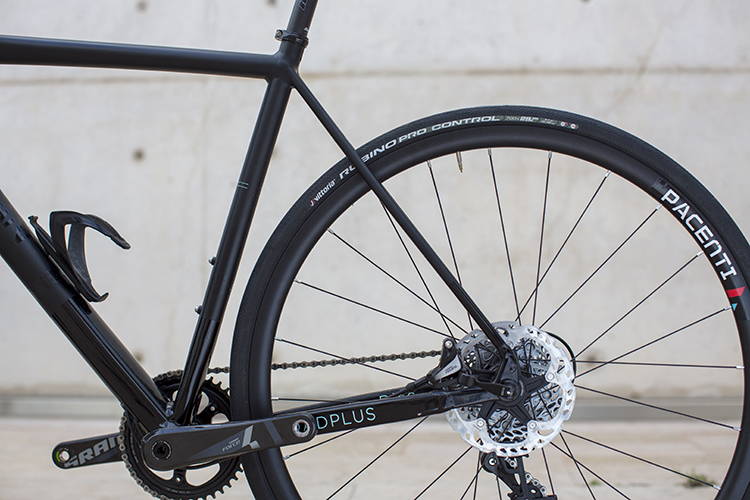

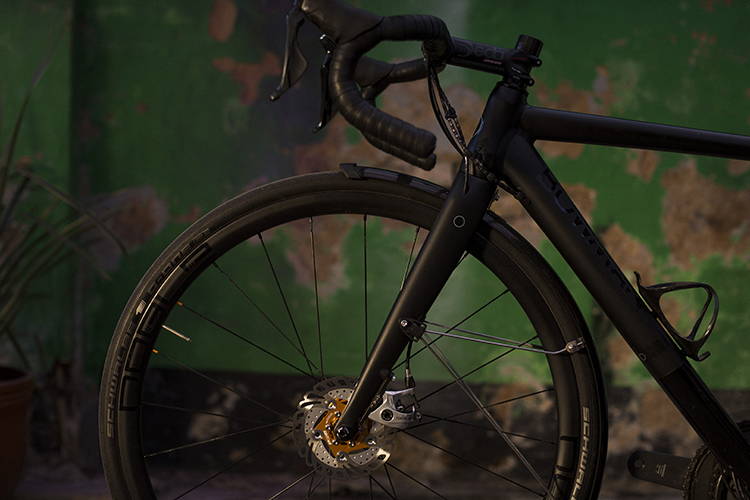

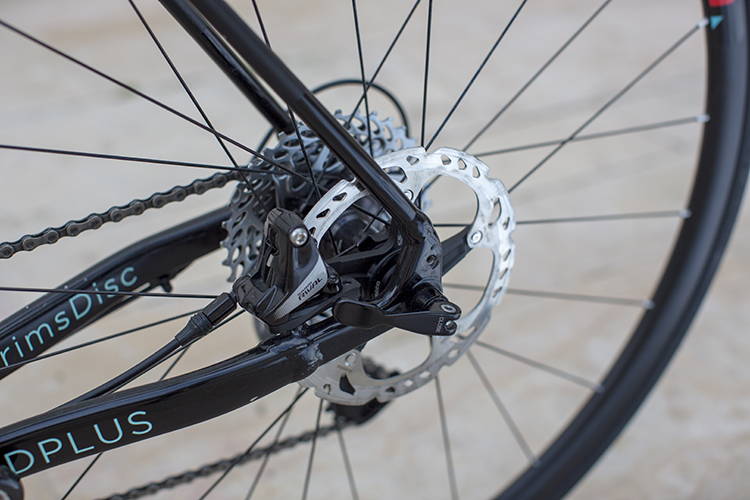

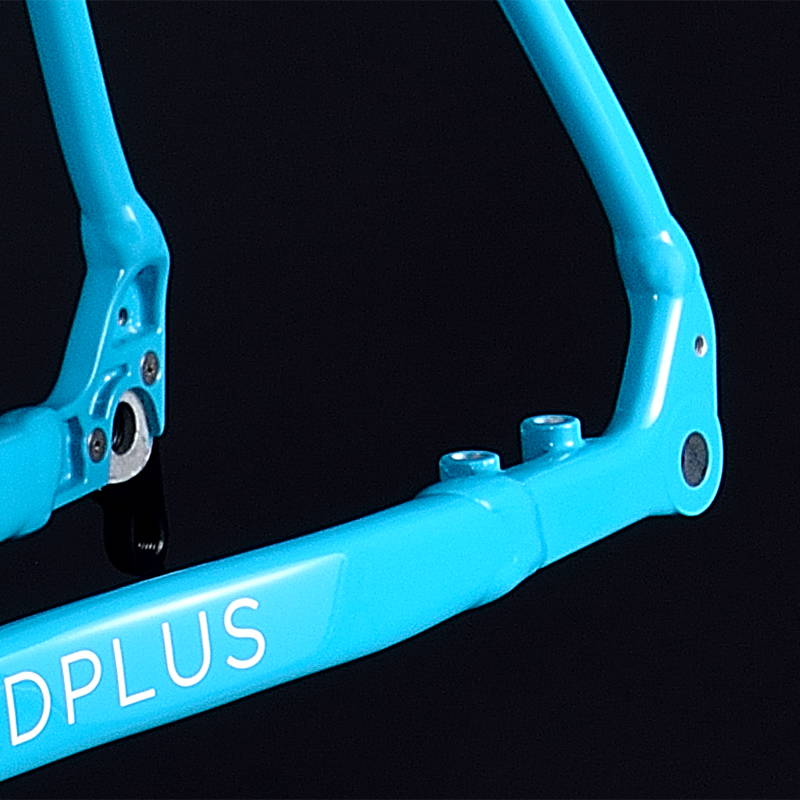

FLAT MOUNT AND 12MM AXLES
Through axles and disc brakes go together like Belgians and cross winds.The solid fixture helps keep the rotor and caliper aligned by reducing twisting in both the frame and the fork. The Pilgrims Disc comes with both QR and bolt through axles in the box, so you have a choice of fast, tool free access, or clean, secure fitting requiring a standard 6mm Allen key for removal
Flat Mount brake caliper mounts are used throughout with adapters to run flat mount calipers on 140 or160mm rotors are included.

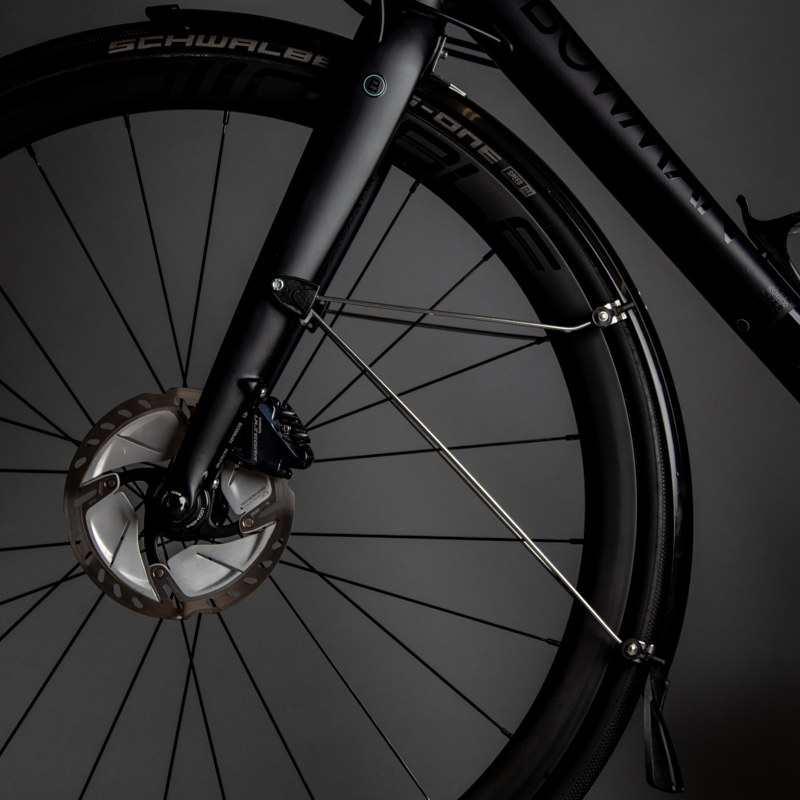

FULLY MUDGUARD READY
Wrapping your wheels with well-fixed guards is the secret to staying both warm and dry, maximising the enjoyment year-round. They’re an essential part of year-round riding for riders with similar seasonality and weather to the UK.
The Pilgrims Disc uses permanent, threaded fixings for all mounting points on the forks, crown, dropout and seat-stay bridge. A mounting hole on the chain-stay bridge allows for a variety of final fix solutions depending on the mudguard brand.

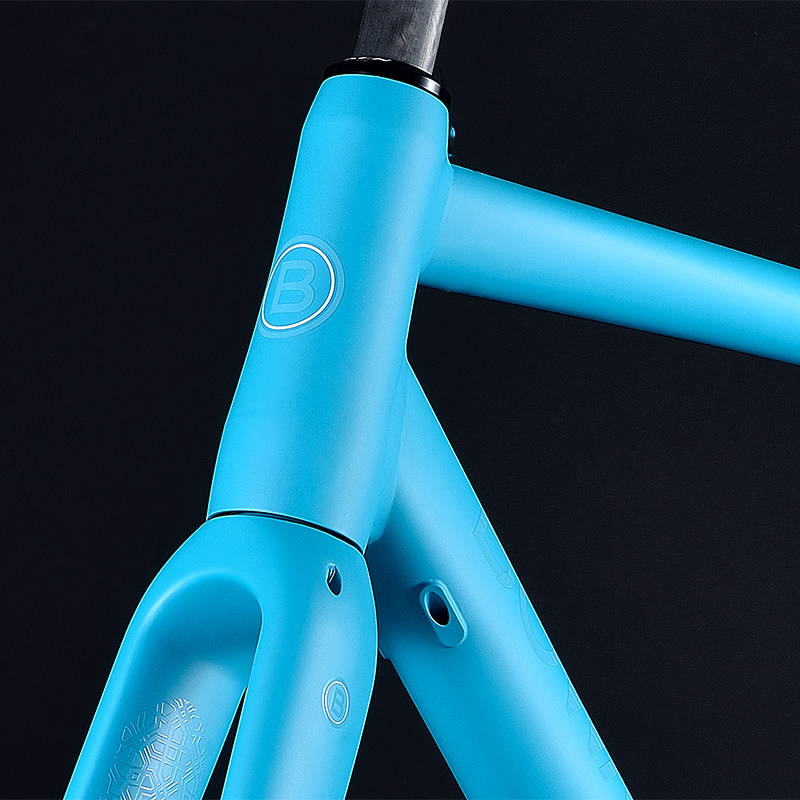

INTEGRATED HEADSET
Bowman aluminium frames come supplied with a stainless steel cartridge bearing headset. High spec, CNC Machined surfaces finished to high spec during final manufacturing processes, ensuring they are parallel, and perpendicular to the frames centreline.
With an integrated headsets simplicity of assembly, a major headache is removed for any home build thanks to the lack of specialist tools required – giving great performance from the box.
TECH DETAILS
Seatpost
Front mech type
Bottom bracket
Stem dimension
Front axle spacing
Rear axle spacing
Brake mount
Rotor size options
Cable routing
Seat clamp size
Max. tyre clearance
27.2mm
Braze on
BSA Thread – 68mm shell width
1:1/8” steerer tube
12 x 100mm
12 x 142mm
Flat mount
140 or 160mm
Internal with continuous full length outer casing
30.9mm (included with frame)
Upto 30mm with guards, 32mm without
WHAT SIZE FRAME SHOULD I RIDE?
Getting a bike that’s fits is a vital, yet often underrated part of the whole cycling experience. Riding the correct size bike can, not only, make the difference between winning and losing but a poorly sized frame can ruin the ride itself with back and joint pain.
We would always recommend getting good fitting advice from someone who’s opinion you trust, possibly a professional fitter who will be able to interpret our geometry data to determine what size is best for you. We're always happy to help with sizing advice and comparing geometries.
Each person has a preferred riding style and bike set-up so nothing is set in stone when it comes to sizing. The chart below shows a guide for which size of Bowman frame we recommend based purely on height and inseam.

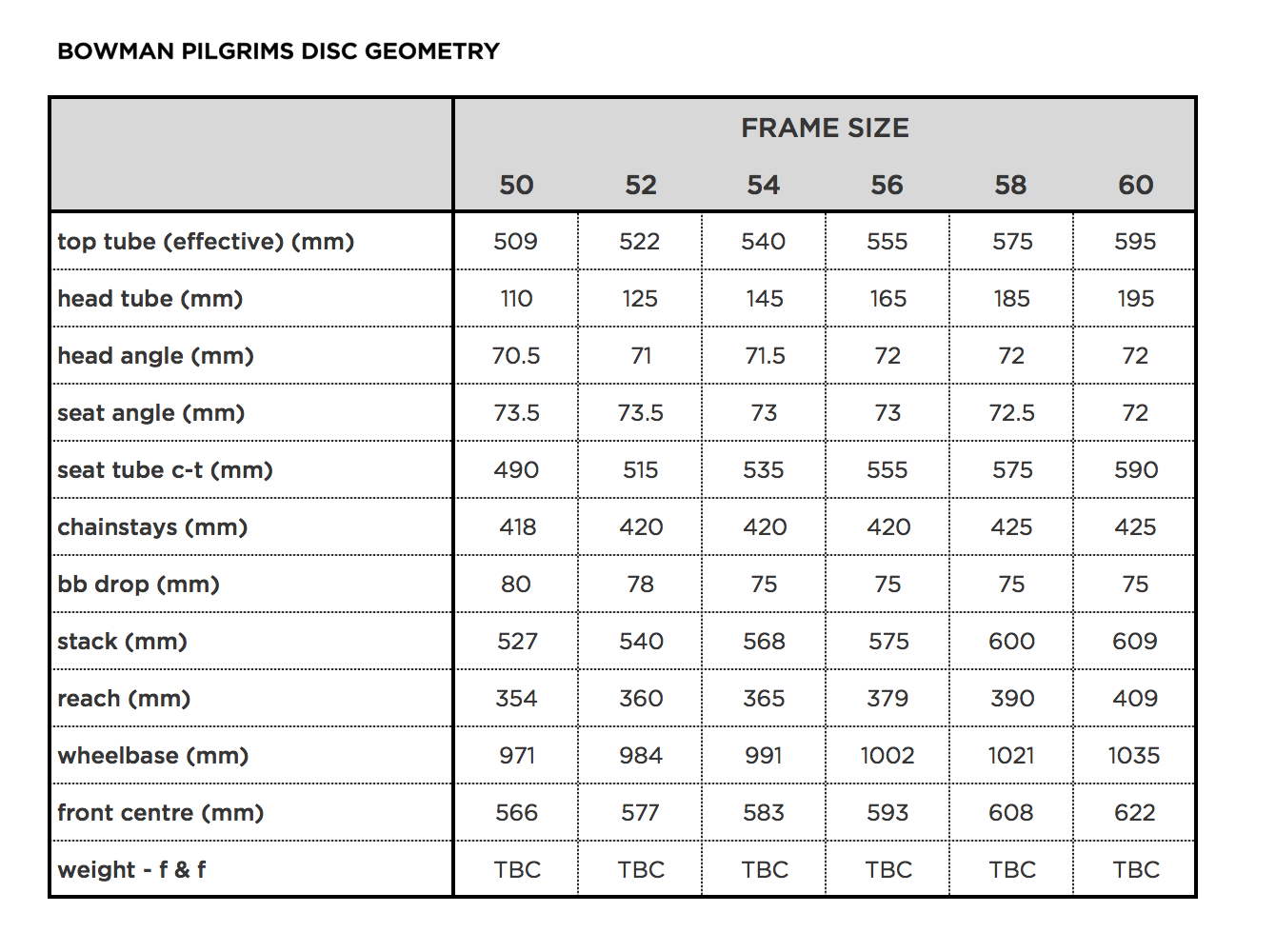

GEOMETRY TABLE
SUPPORT
BUYING
DEALERS
We currently only sell our frames direct via our website – this way you can ensure you get the best price.
DEMO / TEST RIDE
We have a range of demo bikes which are available to test if you are local to us - or would like to visit – at our headquarters in Brockley, South East London. We can promise great coffee (and tea is available if that’s your thing). We also occasionally meet customers in Central London if you are unable to get to us.
TAX / VAT
For International orders outside of the E.U, tax is automatically removed from your sale at the checkout based on your billing and delivery address location, you will however be liable for import tax/duty based on your own country's laws when the item reaches your country, this is usually based on a percentage of the items total value. These charges are not included in the amount you pay to us for shipping and you are responsible for taxes and any import fees. Your order will be held by your local customs office or the courier until this is paid so it may delay your order.
SHIPPING COSTS
We ship worldwide on all products, shipping costs are:
Free - UK
£25 - Near Europe
£35 - Rest of Europe
£75 - America, Africa, Arabia
£85- Asia, Oceania, Rest of World
Customers in Malaysia and Singapore should contact our Malaysian distributor The Cyclist Wardrobe. We can't ship to these countries.
AFTERCARE
WARRANTY
We offer a five-year warranty against material or workmanship failure for the original owner. Your statutory rights are not affected by these terms.
RETURNS
If you have a problem with your frame set and the issue cannot be resolved via email (email is always the fastest way of getting in touch with us, so please do try this first) and your frame needs to be returned to us, you are responsible for the shipping cost. Once we have checked the frame over and determined the cause of the problem we will inform you how it can be resolved.
If the problem is deemed to be a material or workmanship issue we will then offer either repair, wherever possible, a replacement or a full refund. We will also refund the cost you as the customer paid to have the frame returned to us. Any warranty replacement will be shipped free of charge, even for international customers.
REFUNDS
If you paid via PayPal and we action a refund, please allow one working day for the funds to credit your account.
If you paid for your frame using a credit card and have been informed by us that we have actioned your refund, the refund can take 3-8 working days. We have no control over this timeframe. Once we release the funds the length of time the funds take to credit your account is determined by the relationship between your bank/card company and the secure 3rd party payment gateway we use (Stripe Payments). Times may vary, so please check with your bank/credit card company first. You should be able to see that a payment in due to your account, even if it has not shown on your statement
If the problem is deemed to be a material or workmanship issue we will then offer either repair, wherever possible, a replacement or a full refund. We will also refund the cost you as the customer paid to have the frame returned to us. Any warranty replacement will be shipped free of charge, even for international customers.
CHOOSE YOUR FRAMESET
PILGRIMS DISC
£795 inc. VAT
WE SHIP WORLDWIDE - FREE UK SHIPPING
